Air bubble cushion film bag making machine

Short Description:

Main technical parameters of Air bubble cushion film bag making machine EVS-800:

  • 1. Applicable material PE low pressure material PE high pressure material
  • 2. Unwinding width ≤ 800mm, unwinding diameter ≤ 750mm
  • 3. Bag making speed 135-150 / min
  • 4. 160 / min mechanical
  • 5. Bag making width ≤ 800mm bag making length 400mm
  • 6. Discharge gas expansion shaft: 3 inches
  • 7. Automatic rewinding: 2 inches
  • 8. Independent winding: 3 inches
  • 9. Power supply voltage: 22v-380v, 50Hz
  • 10. Total power: 15. 5KW
  • 11. Mechanical weight: 3. 6T

Product Detail

Product Tags

Air cushion film bag making machine, also known as cushion air pillow bag making machine, is a state-of-the-art production line designed to produce air-filled cushion bags, hollow-filled cushion bags, and inflatable air-bubble films. This machine is ideal for companies that require high-volume production rates and efficient, cost-effective packaging solutions.

The air cushion film making machine adopts PE co-extruded packaging film to make air cushion coils, which is suitable for the packaging of electronic products, broken products, bags and other items. The machine seals air channels and film sides and cross-sections in one seamless operation, creating a more refined and attractive packaged product.

One of the main advantages of the air cushion film making machine is its high efficiency and simple operation. It is a mechatronic device designed to save electricity and simplify the production process. The machine is equipped with a frequency converter for infinitely variable speed, and independent release and pick-up motors for increased productivity.

The film production line is also designed with an air expansion shaft in the winding and unwinding part, which is convenient for loading and unloading products. The machine has built-in features such as auto-homing, auto-alarm and auto-stop to optimize operational efficiency and ease of maintenance.

The air cushion film making machine is equipped with a fully automatic EPC device in the unwinding part to ensure the uniformity of film production. The winding and unwinding part is also equipped with a high-function potential sensor to ensure continuous film feeding and stable unwinding.

The machine adopts the integrated device of motor reducer and brake, which eliminates the belt chain and noise, and improves the stability and precision. The unwinding process adopts optical eye EPC technology, which makes the film smoother and tighter, and provides a cleaner and safer packaging solution. Our Air Cushion Film Making Machines are among the most advanced models available and more and more leading packaging companies are choosing to upgrade to our state of the art lines. It is a cost-effective solution for companies requiring high-volume production rates and attractively packaged products.

Advantages

The air bag machine, air bag film rolling machine, and air pillow packaging machine adopt a simple linear structure design, which is easy to install and operate.

We only use the best components for our machines, including advanced brands of pneumatic components, electrical systems and operating components. All other machine parts are from China's top machine supply chain, which makes the machine more stable and reliable than others in the market, with extremely low maintenance requirements.

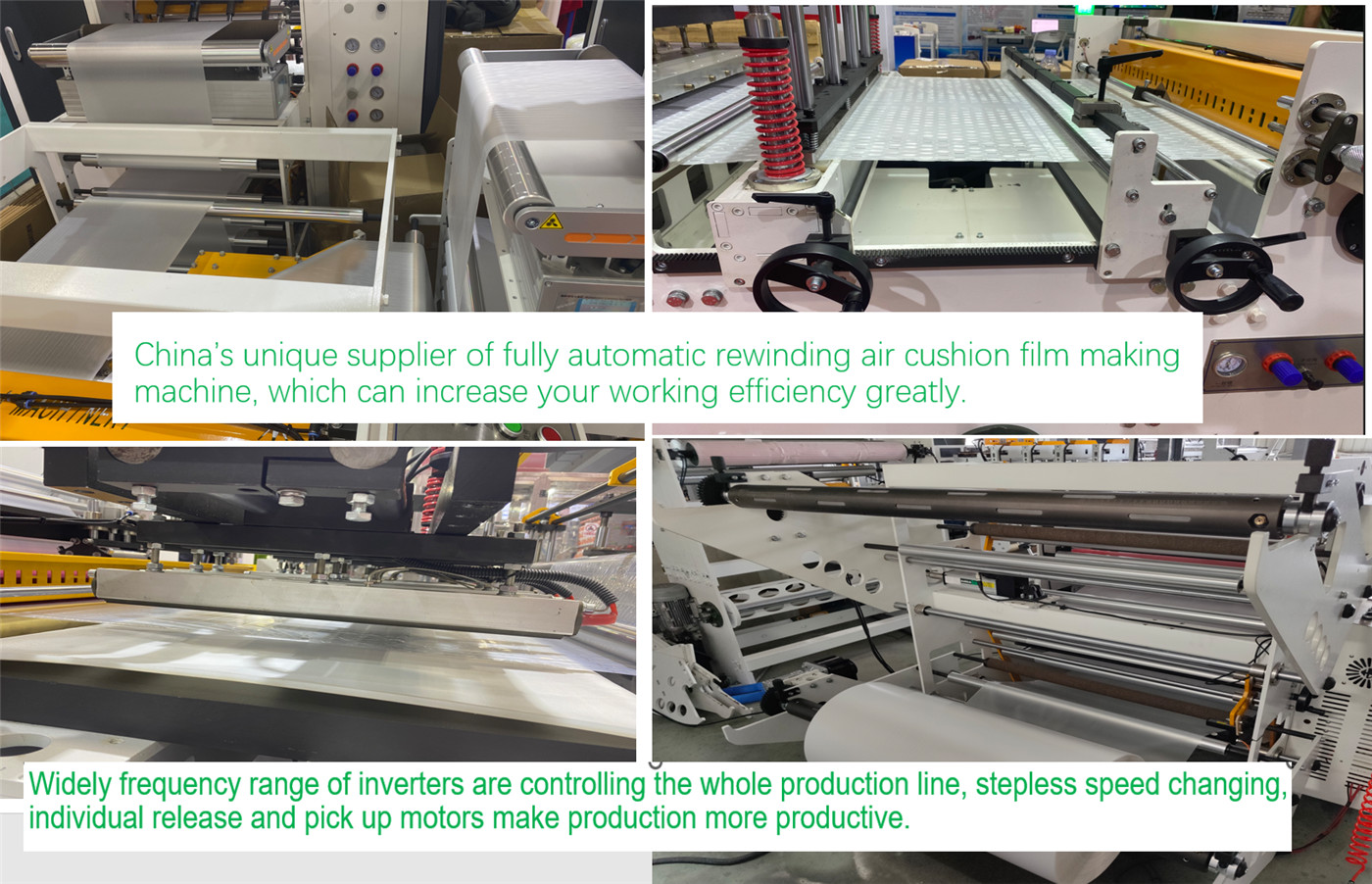

Our machines are highly automated and advanced, our air cushion film making machine is the only machine with automatic rewinding function in China.

Our air cushion film coil production line, air cushion film making machine, air cushion film production line, and air cushion film coil conversion line all adopt the latest motion control technology, from unwinding to cutting and forming, all are controlled by computer.

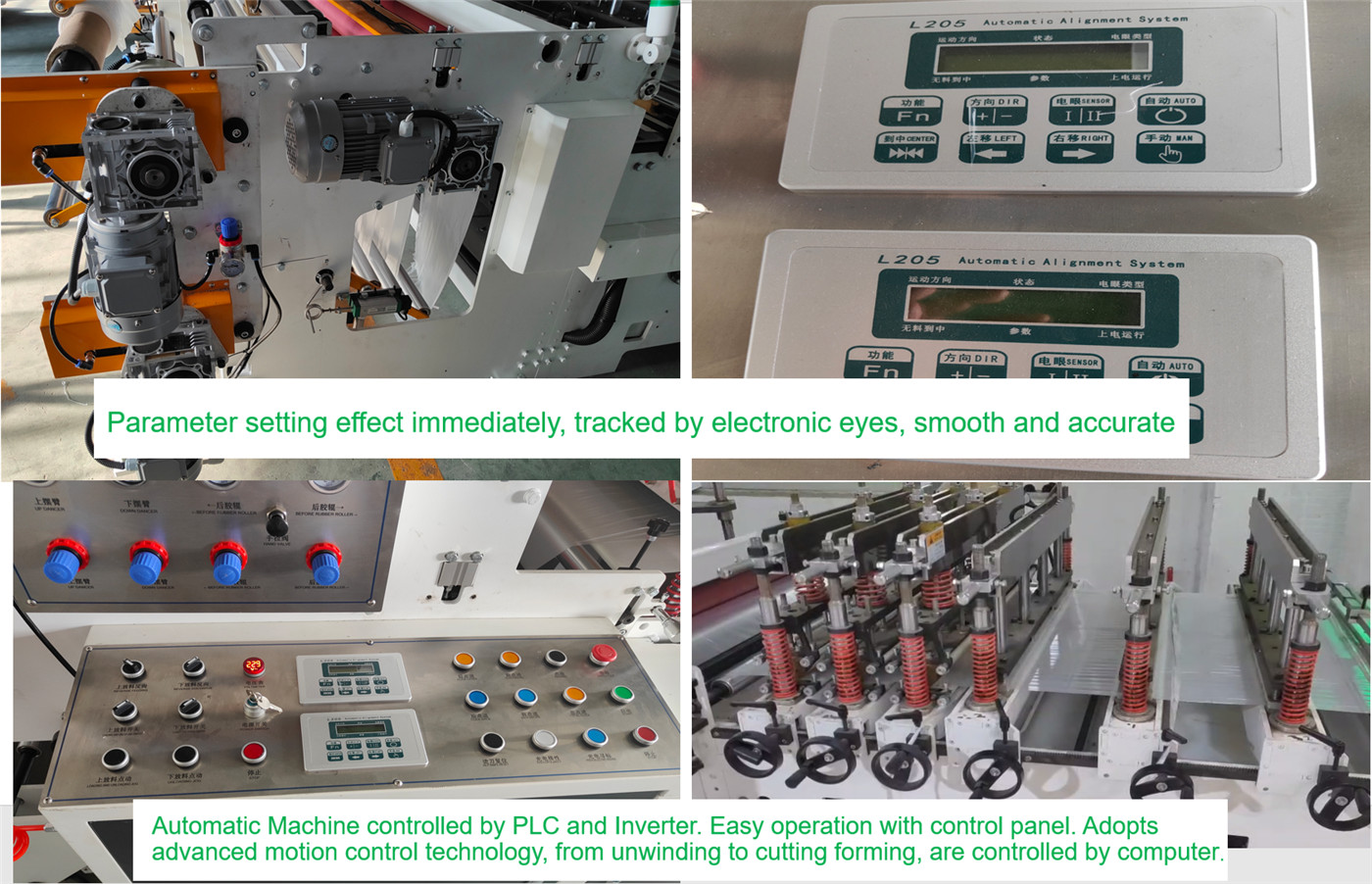

Our machines are automatically controlled by PLCs and frequency converters, making them easy to operate through control panels. Furthermore, parameter settings are instant and tracked by electronic eyes, ensuring a smooth and accurate production process.

Our inverters include a wide frequency range to control the entire production line, allowing for infinitely variable speeds, as well as independent release and pick-up motors that increase productivity, creating an efficient and productive production process.

Advantage 1
Advantage 2
Advantage 3
Advantage 4
Advantage 5
